RS Kit Rear Shock Piston Upgrade Kit – WP 46 mm – Dal Soggio – KTM Enduro 2020-2023
Dal Soggio RS rear shock upgrade kit with a 46 mm CNC-machined piston, developed for KTM Enduro WP Xplor rear shocks from 2020 to 2023 and supplied with dedicated shim settings for improved hydraulic damping control.
$239.99
13 In Stock
Product Description
The Dal Soggio 1P.RSKIT46-2023 RS Kit is an internal rear suspension upgrade developed specifically for KTM Enduro motorcycles equipped with the corresponding WP Xplor rear shock from 2020 to 2023.
The RS Kit improves the original shock by replacing its main hydraulic piston with a purpose-developed Dal Soggio component and combining it with a dedicated shim configuration.
Rather than modifying only the shim stack, Dal Soggio redesigns both the piston geometry and the associated valving to recalculate the way suspension oil flows through the shock during compression and rebound.
At the center of the system is a 46 mm CNC-machined piston manufactured from ERGAL 7075 T6.
The piston features 4 oil passages and receives a hard-anodized surface treatment, providing a durable hydraulic component designed for demanding off-road suspension use.

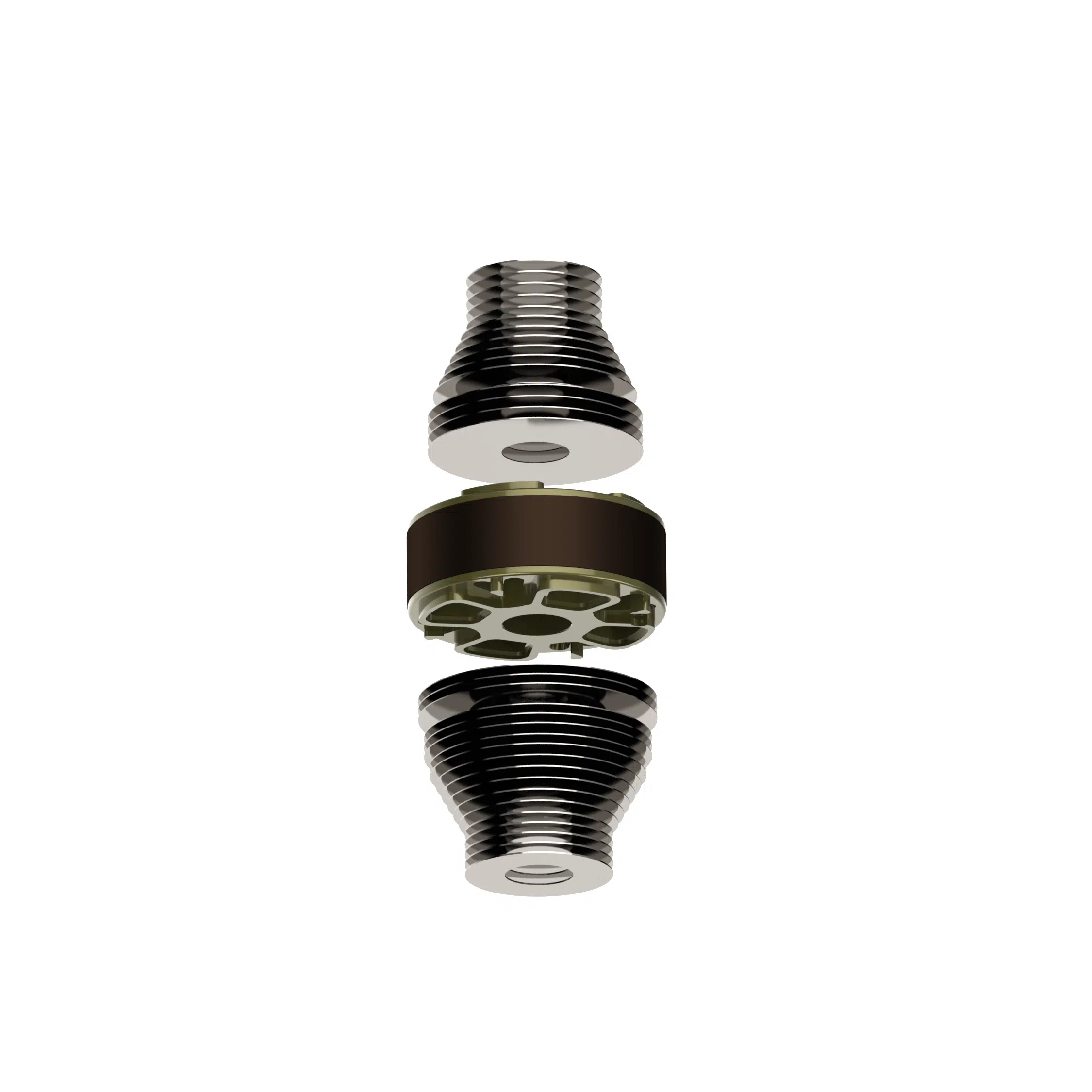

The revised piston and shim settings operate together as a complete damping package, allowing the original WP Xplor shock to be upgraded internally without replacing the complete rear suspension assembly.
Key Features
- Developed specifically for KTM Enduro WP Xplor rear shocks from 2020 to 2023
- Includes a 46 mm CNC-machined piston manufactured from ERGAL 7075 T6
- Piston features 4 dedicated oil passages for controlled hydraulic flow
- Hard-anodized surface treatment provides increased piston surface durability
- Redesigned piston and dedicated shim settings recalculate oil flow for improved rear-shock damping performance
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Dal Soggio Race |
| Part Number / SKU | 1P.RSKIT46-2023 |
| Product Family | RS Kit |
| Product Type | Rear Shock Piston / Hydraulic Upgrade Kit |
| Suspension Position | Rear |
| Shock Platform | WP Xplor |
| Motorcycle Family | KTM Enduro |
| Compatibility Period | 2020-2023 |
| Piston Diameter | 46 mm |
| Piston Manufacturing | CNC machined |
| Piston Material | ERGAL 7075 T6 |
| Surface Treatment | Hard anodizing |
| Oil Passages | 4 |
| Valving | Dedicated RS shim configuration |
| Installation Type | Internal rear-shock retrofit |
| Professional Installation | Recommended |
Application & Compatibility
The 1P.RSKIT46-2023 is designed for the corresponding 46 mm WP Xplor rear shock fitted to KTM Enduro motorcycles from 2020 to 2023.
Dal Soggio separates this application from the other RS D46 variants, including:
- KTM Enduro 2017-2019;
- KTM Enduro 2020-2023;
- KTM Enduro 2024-2026;
- Beta Sachs applications;
- KYB Beta / Fantic applications.
The correct kit should therefore be selected according to the rear-shock platform, piston diameter, and model-year range, not simply according to the motorcycle brand.
How the RS Kit Works
During rear-shock movement, suspension oil is forced through the main piston and its shim stacks.
Hydraulic resistance is determined by the interaction between:
- piston geometry;
- oil-passage dimensions;
- shim-stack configuration;
- suspension shaft speed.
The RS Kit modifies these elements as a matched system.
Dal Soggio uses a redesigned 46 mm piston together with dedicated shim settings to recalculate hydraulic oil flow, allowing the original WP Xplor shock to operate with a different damping characteristic.
46 mm CNC-Machined Piston
The core component of the kit is the 46 mm RS piston.
It is CNC machined from ERGAL 7075 T6 and incorporates 4 oil passages.
These passages allow suspension fluid to move through the piston while the shim stacks regulate the resulting hydraulic resistance.
The piston is also hard anodized, increasing surface durability for continuous operation inside the rear shock.
Dedicated Shim Settings
The RS Kit includes a valving concept developed around the new piston rather than simply installing the piston with the original shim configuration.
The dedicated shim settings work with the four piston ports to control oil flow during both compression and rebound.
This matched approach is intended to improve:
- compression damping control;
- rebound behavior;
- consistency throughout the shock stroke;
- response across different suspension velocities;
- overall rear-wheel control.
Official Suggested Setup
Dal Soggio publishes a specific baseline setup for the KTM Enduro WP Xplor 2020-2023 RS Kit.
The manufacturer’s suggested starting values are:
| Setting | Dal Soggio Suggested Baseline |
|---|---|
| High-Speed Compression | 2 turns from closed toward open |
| Low-Speed Compression | 13 clicks open |
| Rebound | 12 clicks open |
| Static Sag | 38-40 mm |
| Dynamic Sag | 110-115 mm |
| Shock Pressure | 10 bar |
| Oil | SAE 3W |
These values should be considered starting points for setup, not fixed settings for every rider. Final adjustment should take rider weight, spring rate, terrain, riding style, motorcycle setup, and front/rear chassis balance into account.
Installation Note
Installation requires complete servicing of the WP Xplor rear shock, removal of the original piston, installation of the Dal Soggio RS piston and dedicated shim configuration, correct oil filling and bleeding, shock pressurization, and final suspension setup.
Because the rear shock is a pressurized hydraulic component requiring specialist tools and correct service procedures, installation and calibration by a qualified suspension technician or Dal Soggio specialist are recommended.
