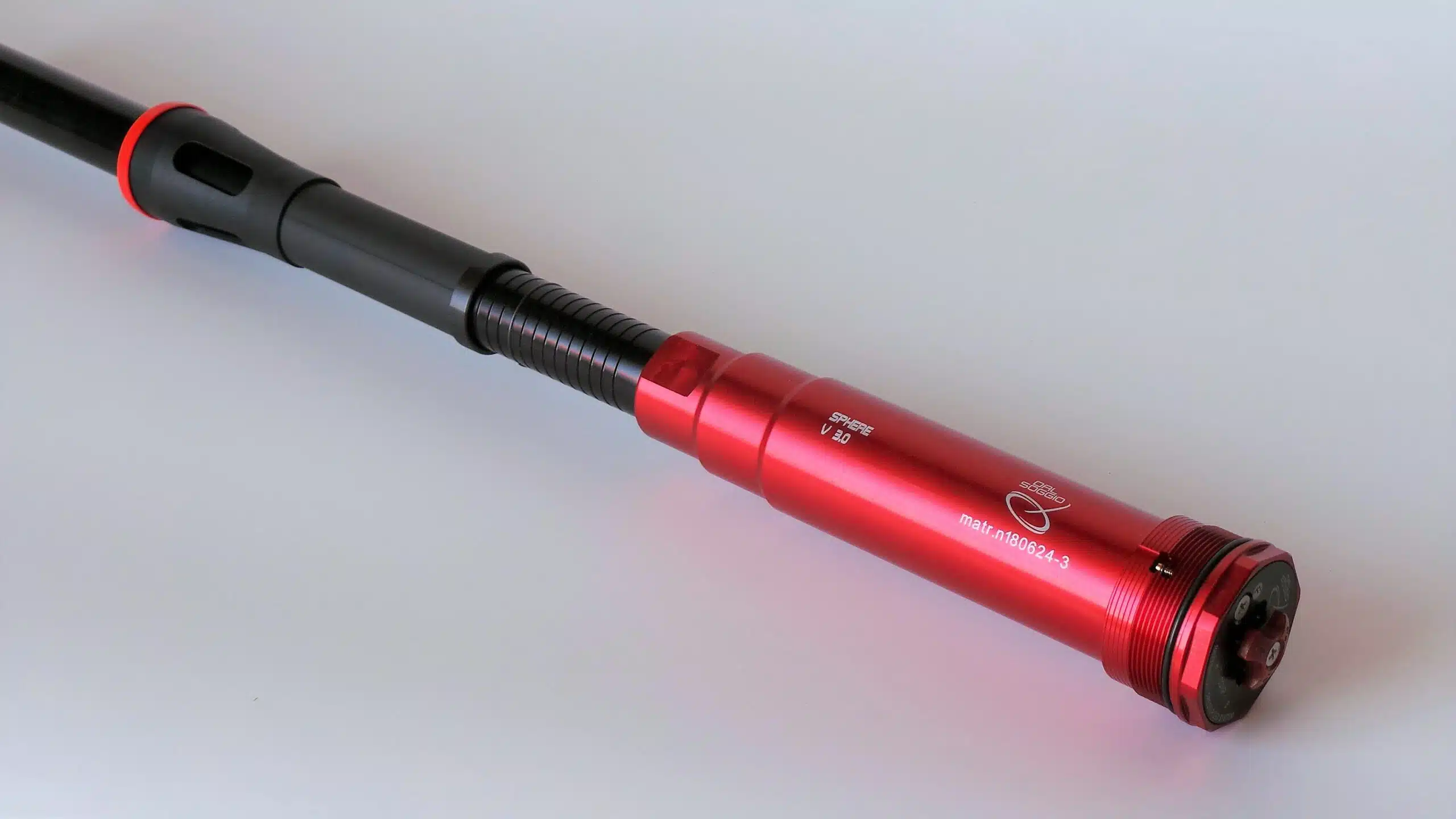

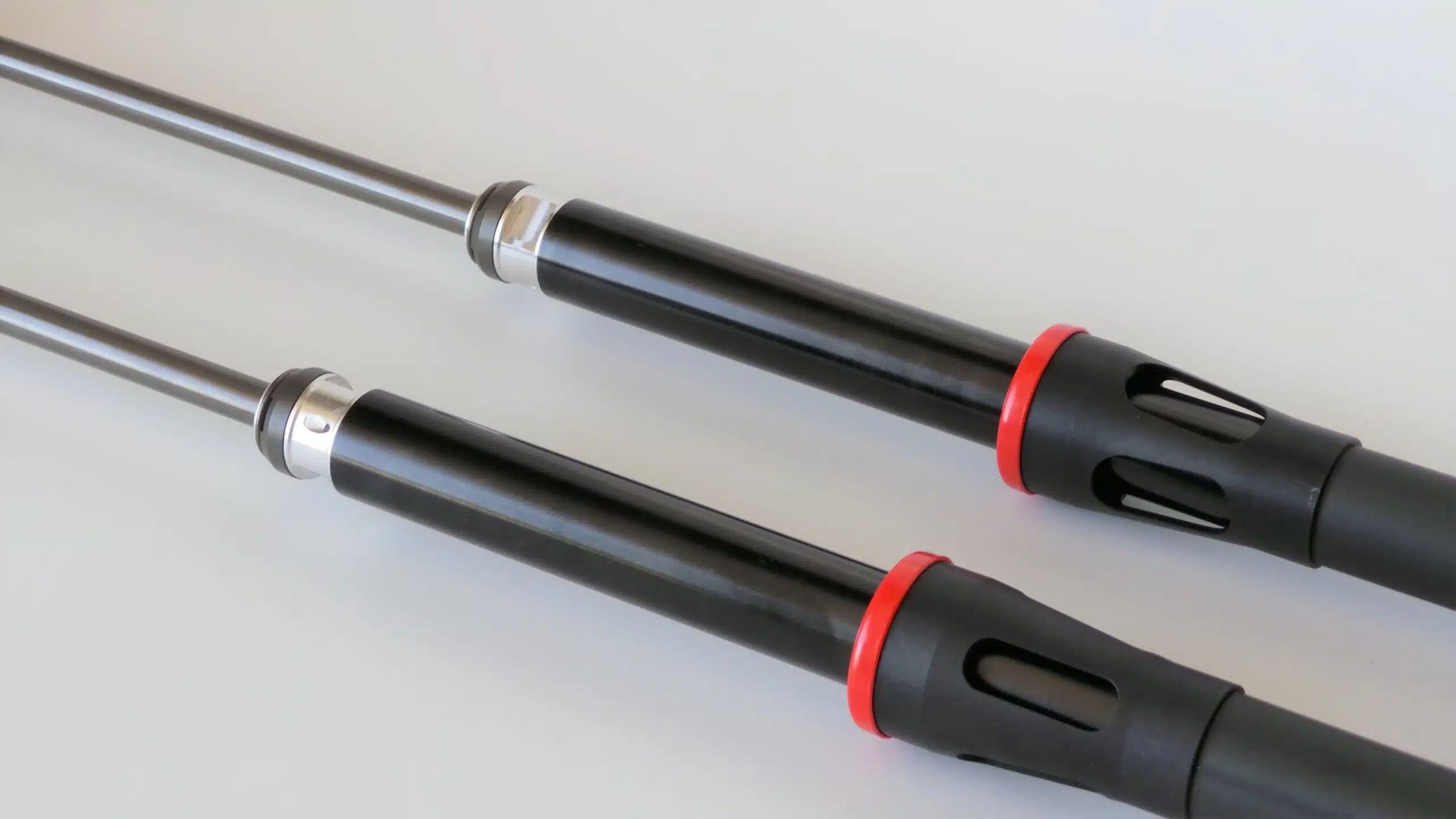

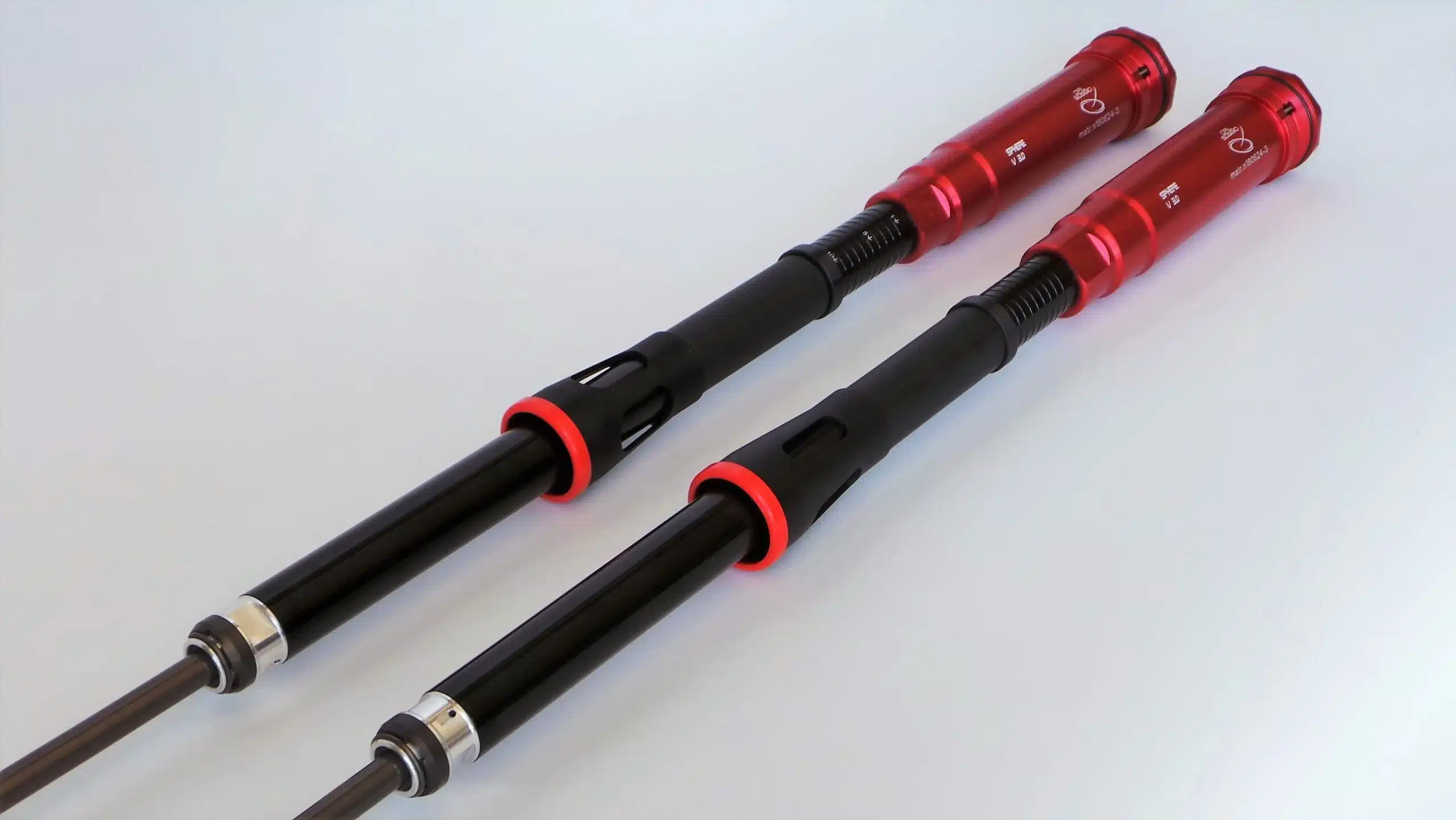

Dal Soggio SPHERE 3.0 WP 48 4CS Enduro Cartridge Kit
High-performance sealed and pressurized hydraulic cartridge kit developed by Dal Soggio Race for compatible WP 48 4CS Enduro forks used on KTM and Husqvarna off-road motorcycles.
$1,619.99
Only 2 Left!
Product Description
The Dal Soggio SPHERE 3.0 WP 48 4CS Enduro Cartridge Kit is a high-performance suspension upgrade developed specifically for WP 48 4CS Enduro front forks fitted to compatible KTM and Husqvarna motorcycles.
Dal Soggio officially identifies SKU 1P.SPH.4CSEN3.0 as the Sphere 4CS EN 3.0 version, designed for Enduro applications within the WP 4CS fork family.
SPHERE 3.0 is the latest evolution of Dal Soggio Race’s sealed and pressurized hydraulic cartridge system, developed through extensive dyno and track testing to improve fork sensitivity, precision, hydraulic control, and rider feedback.
A key development is the redesigned bladder, which features a thinner yet stronger construction. This improves cartridge sensitivity and allows greater precision during hydraulic bleeding.
The redesigned compression base valve features separate High-Speed Compression and Low-Speed Compression settings, allowing each damping range to be adjusted independently according to terrain, riding style, and suspension setup.
Another major update is the new 36 mm compression piston, replacing the previous 28 mm design. The larger piston is intended to improve the linearity of the front fork’s hydraulic response throughout the suspension stroke.
SPHERE 3.0 also incorporates Dal Soggio’s Direct Flow Technology. The compression piston receives oil directly rather than through the previous Z-shaped passages, helping reduce internal hydraulic restriction and cartridge stress.
In Enduro use, these characteristics are intended to provide improved sensitivity over roots, rocks, braking bumps, ruts, and technical terrain while maintaining hydraulic support when the fork is subjected to harder impacts.
Dal Soggio specifies CUBE Fork Oil 5W for use inside the SPHERE hydraulic cartridge system.
Key Features
- Sealed and pressurized SPHERE 3.0 hydraulic cartridge developed for WP 48 4CS Enduro forks
- New thinner and stronger bladder improves cartridge sensitivity and hydraulic bleeding precision
- Separate High-Speed and Low-Speed Compression settings allow independent compression damping adjustment
- New 36 mm compression piston improves hydraulic linearity compared with the previous 28 mm design
- Direct Flow Technology feeds oil directly to the compression piston to reduce internal flow restriction and cartridge stress
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Dal Soggio Race |
| Part Number / SKU | 1P.SPH.4CSEN3.0 |
| Product Name | SPHERE 3.0 WP 48 4CS EN |
| Product Type | Hydraulic Fork Cartridge Kit |
| Series | SPHERE 3.0 |
| Fork Platform | WP 48 4CS |
| Discipline | Enduro |
| Motorcycle Brands | KTM / Husqvarna |
| Dal Soggio Compatibility Range | 2013-2016 |
| Cartridge Type | Sealed and Pressurized Hydraulic Cartridge |
| Compression Piston Diameter | 36 mm |
| Previous Piston Diameter | 28 mm |
| Compression Adjustment | Separate High-Speed and Low-Speed Compression |
| Bladder | New thinner and stronger design |
| Hydraulic Technology | Direct Flow Technology |
| Specified Oil | Dal Soggio CUBE Fork Oil 5W |
| Installation Type | Internal Fork Cartridge Replacement / Upgrade |
| Professional Installation | Recommended |
Application & Compatibility
The 1P.SPH.4CSEN3.0 SPHERE 3.0 is designed for compatible WP 48 4CS Enduro front forks.
Dal Soggio officially classifies this version as:
WP 4CS – KTM / Husqvarna – Enduro – 2013-2016.
This version should not be confused with SKU 1P.SPH.4CSCR3.0, which is the dedicated motocross / Cross version for the WP 4CS fork family.
Because WP 4CS equipment varied by motorcycle model, market, and production year, final compatibility should always be verified against the actual fork installed on the motorcycle.
Hydraulic System & Performance
SPHERE 3.0 replaces the original internal damping arrangement with a sealed and pressurized hydraulic cartridge engineered to provide greater suspension precision and sensitivity.
The new bladder assists hydraulic pressure management and cartridge responsiveness, while the separate high-speed and low-speed compression adjustments provide a wider tuning range.
The 36 mm compression piston increases the working diameter compared with the previous 28 mm configuration and contributes to a more linear hydraulic response.
With Direct Flow Technology, oil reaches the compression piston directly, avoiding the previous Z-type internal passages and reducing unnecessary internal flow restrictions.
Enduro Application
Enduro riding demands both sensitivity and support from the front suspension.
The fork must remain compliant over roots, rocks, ruts, loose terrain, and braking bumps while still offering sufficient hydraulic control during faster impacts and aggressive riding.
The independent compression circuits allow a suspension technician to work separately on slower chassis movements and faster suspension inputs.
Low-speed compression adjustment can influence chassis support, braking behavior, and rider-induced movements, while high-speed compression adjustment can be used to manage faster impacts generated by square edges, rocks, roots, and harder terrain features.
Oil & Service
Dal Soggio specifies CUBE Fork Oil 5W for the SPHERE hydraulic cartridge.
Correct cartridge bleeding, oil quantity, spring setup, damping adjustment, and overall chassis balance are essential for proper suspension performance.
Professional installation and setup by a qualified off-road suspension specialist are recommended.
Installation Note
Before installation, confirm:
- correct WP 48 4CS fork platform;
- Enduro configuration;
- compatible KTM or Husqvarna application;
- correct Dal Soggio SKU 1P.SPH.4CSEN3.0.
The SPHERE cartridge should be installed and tuned according to rider weight, skill level, riding style, terrain, and motorcycle configuration.
